Aktuell noch 1 Stück an Lager.
Robuster Tandem-Bootstrailer der Böckmann Tochterfirma TPV, überzeugt durch eine stabile feuerverzinkte geschweißte Rahmenkonstruktion und eine zusätzliche Reling zur Verstärkung. Durch seine verschiebbaren sowie höhen- und seitenverstellbaren beweglichen Langauflagen, höhenverstellbare Kielrollen und den verstellbaren Windenstand mit einer höhenverstellbaren Winde und Bugstütze kann er sehr leicht an fast jedes Motorboot bis zu einer Bootslänge von 8,50 m angepasst werden.
Ausführung: gebremst
Gesamtgewicht (kg): 3.500
Nutzlast ohne Zubehör (kg): 2.838
Kasteninnenmaße L/B/H (mm): 8.515 x 2.060 x 0
Maße über alles L/B/H (mm): 9.685 x 2.520 x 1.495
Bootslänge ca. (mm): 8.500
Kupplungshöhe (mm): 440
max. Stützlast (kg): 150
Zulassung (kmh): 100
Fahrgestell: feuerverzinkte geschweißte V-Deichsel
Achse: Knott-Gummifederachse mit Einzelradaufhängung mit wassergeschützten Radnaben
Windenstand: höhenverstellbar, mit verstellbarer Bugauflage, mit Winde
Stützen: hinten 4 höhenverstellbare Kurbelstützen, vorne 2 höhenverstellbare Klemmstützen 600 mm
Auflagen: hinten 2 Langauflagen 600 x 92 mm aus blauem Polyvinyl, vorne 2 Langauflagen 300 x 92 mm aus blauem Polyvinyl
Kielrollen: 6 höhenverstellbare V-Rollen aus blauem Polyvinyl
Lichtleiste: auszieh- und abnehmbar
Stützrad: Automatik
Zurrbügel: 6 serienmäßig montiert
Bereifung: 14 Zoll
Kotflügel: Stahlblech
Anschluss: 13-poliger Stecker
Preis bei Abholung, Lieferung optional.
Gerne stellen wir Ihnen auch unsere Miettrailer für Boote zur Verfügung:
Eingelöste Trailer zum Bootstransport mit Gurten und Werkzeug, inkl. Ausland: ab 100.- / Tag, 400.- / Woche
Lagertrailer (nicht geeignet für Strassentransport) ab CHF 80.- / Monat
catalog image catalog image
- 71
- 40
- Share
Trailer, Twin Axle

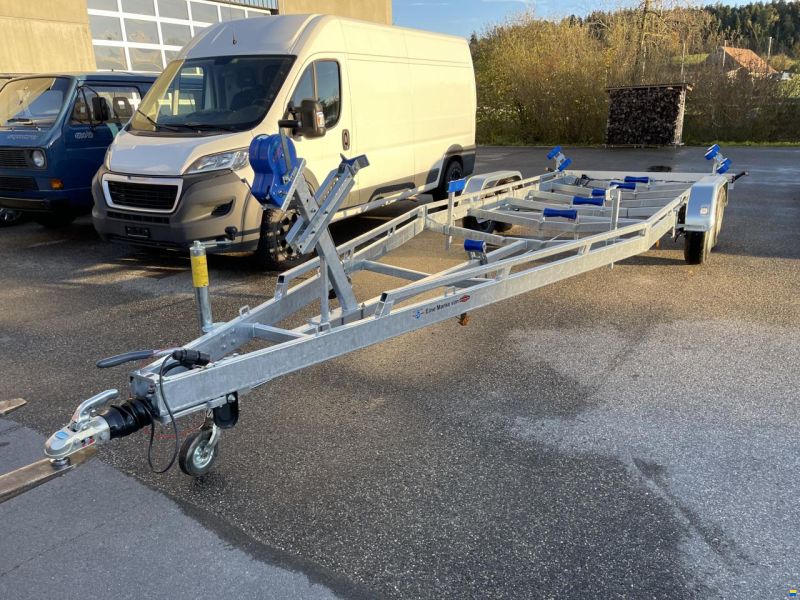

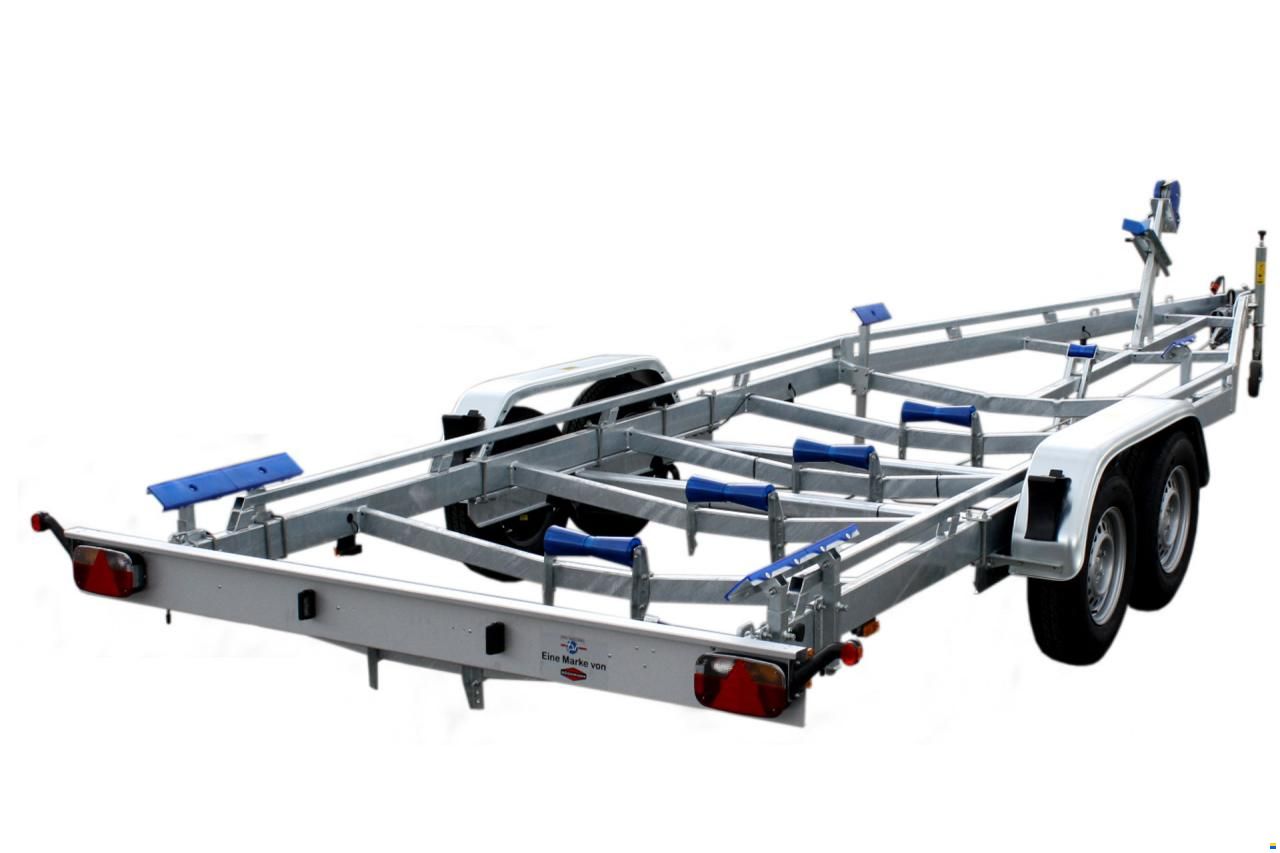

TPV Böckmann BA 3500
For boats up to 2838 kg and 8.5 meters
- 2025Year Built
- as newCondition
- 8.51 m x 2.52 mLength x Beam
- SteelMaterial
- 2'838 kgPay load
Do you need more details?
Location
Sempachersee » Ruswil
Comments
2025 TPV Böckmann BA 3500, CHF 5'400.-
This is the text in the original language.
Just a moment please, we are translating the text for you.
Sorry, the text could not be translated automatically.
This text has been auto-translated.
Currently 1 piece still in stock.
Robust tandem boat trailer from the Böckmann subsidiary TPV, impresses with a stable hot-dip galvanized welded frame construction and an additional railing for reinforcement. Thanks to its sliding, height-adjustable and laterally adjustable movable long supports, height-adjustable keel rollers and the adjustable winch stand with a height-adjustable winch and bow support, it can be easily adapted to almost any motorboat up to a boat length of 8.50 m.
Version: braked
Total weight (kg): 3,500
Payload without accessories (kg): 2,838
Internal box dimensions L/W/H (mm): 8,515 x 2,060 x 0
Overall dimensions L/W/H (mm): 9,685 x 2,520 x 1,495
Boat length approx. (mm): 8,500
Coupling height (mm): 440
Max. drawbar load (kg): 150
Approval (kmh): 100
Chassis: hot-dip galvanized welded V-drawbar
Axle: Knott rubber spring axle with independent wheel suspension with water-protected wheel hubs

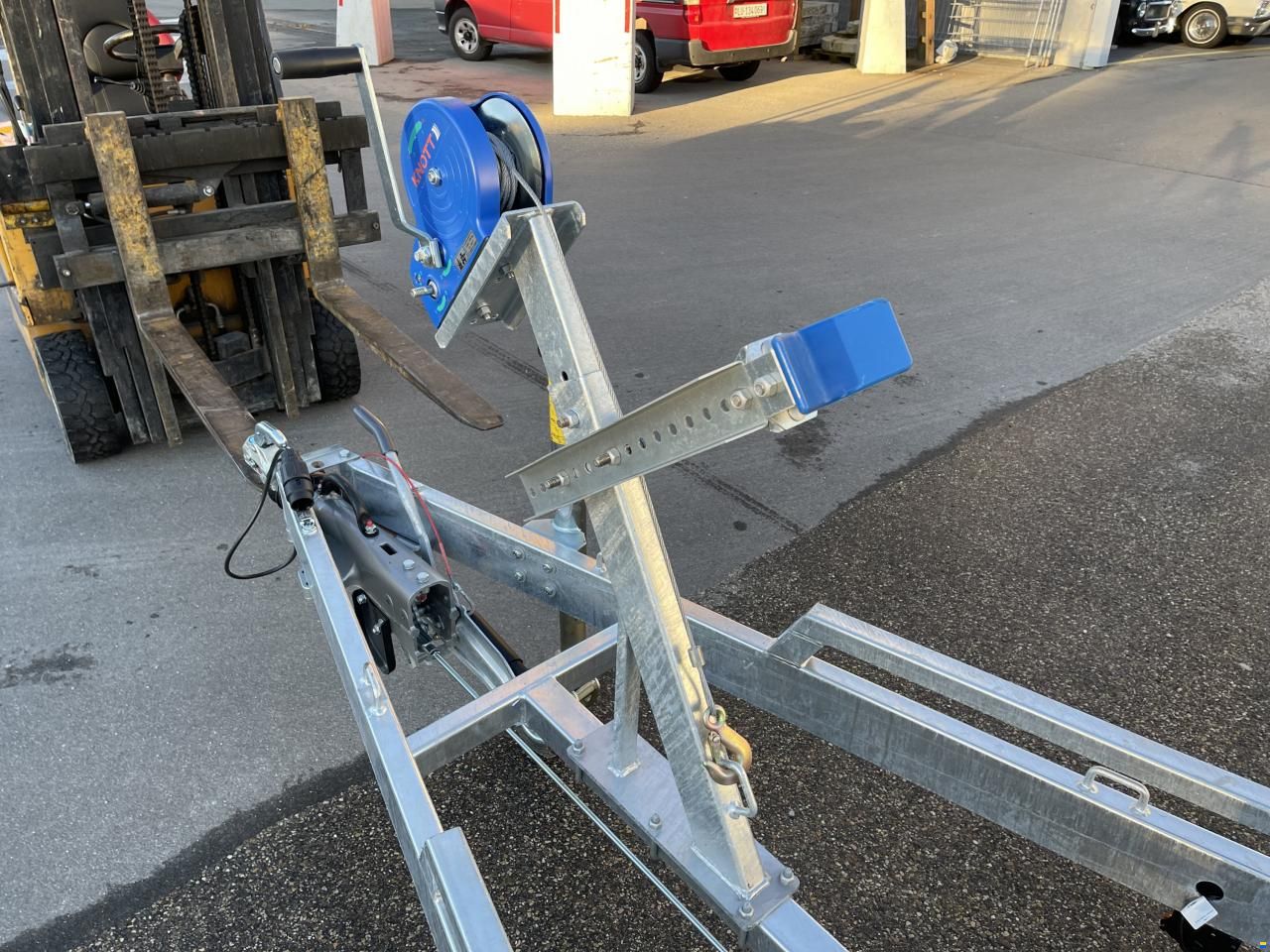

Winch stand: height-adjustable, with adjustable bow support, with winch
Supports: 4 height-adjustable crank supports at the rear, 2 height-adjustable 600 mm clamping supports at the front
Supports: 2 long supports 600 x 92 mm made of blue polyvinyl at the rear, 2 long supports 300 x 92 mm made of blue polyvinyl at the front
Keel castors: 6 height-adjustable V-castors made of blue polyvinyl
Light bar: extendable and removable
Support wheel: automatic
Lashing brackets: 6 fitted as standard
Tires: 14 inch
Mudguards: sheet steel
Connection: 13-pin plug
Price on collection, delivery optional.
We are also happy to provide you with our rental trailers for boats:
Redeemed trailers for boat transportation with straps and tools, incl. abroad: from 100.- / day, 400.- / week
Storage trailers (not suitable for road transportation) from CHF 80.- / month
